Model Name DR590X-2CH Plus With GPS
Channel
2CH

Highlights
Full HD (Front + Rear), Wi-Fi, External GPS, Sony Sensor

Product Dimensions
Front: Black / Width 111.8 mm x Height 34 mm / 87.8 g
Rear: Black / Width 67.4 mm x Height 25 mm / 20.3 g

Rear Camera Connection
Analog cable

Memory Support
microSD Card (32 GB / 64 GB / 128 GB / 256GB / 512GB)

Recording Modes
– Normal,
– Event recording (when impact is detected in normal and parking mode)
– Parking Mode (when motion is detected)

* When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.

Parking Mode
YES (hardwiring cable included)

Parking Mode Event Voice Notifications
YES

Imaging Sensor
Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Rear: CMOS Sensor (Approx. 2M Pixel)

Viewing Angle
Front: Diagonal 139°, Horizontal 116°, Vertical 61°
Rear: Diagonal 136.8°, Horizontal 111.3°, Vertical 57.5°

Resolution Frame Rate
Front / Rear
Full HD @30fps – Full HD @30fps
* Frame rate may vary during Wi-Fi streaming.

Video Codec
H.264 (AVC)

Image Quality and Bitrate Front/Rear
Highest: 12+10 Mbps
High: 10+8 Mbps
Normal: 8+6 Mbps

Format Free
YES (Adaptive)

Event File Overwrite Protection
YES

SD Card Failure Alert
YES

Scheduled Reboot
YES

Video File Extension
MP4

Wi-Fi
Built-in (802.11 b.g.n)

GPS
External (Dual Band: GPS, GLONASS)

Microphone
Built-in

Speaker
Built-in

Impact Sensor
3-Axis Acceleration Sensor

LED Indicators
Front: Recording LED, GPS LED, Wi-Fi LED, Front Security LED
Rear: Rear Security LED

Button
Wi-Fi button: * Press once to turn on/off Wi-Fi.

Operation Temperature
-20℃ – 70℃ (-4°F – 158°F)

Storage Temperature
-20℃ – 80℃ (-4°F – 176°F)

High Temp Cut Off
Approx. 70℃ (158°F)

Backup Battery
Built-in supercapacitor

Input Power
DC 12V-24V (DC Plug (Ø3.5 x Ø1.35)) to Wires (Black: GND/Yellow: B+/Red: ACC)

Power Consumption Hour
Normal Mode (WiFi On / GPS On / 2CH) : 370mA / hour
Normal Mode (WiFi Off / GPS On / 2CH) : 330mA / hour
Parking Mode (WiFi On / GPS Off / 2CH) : 340mA / hour
Parking Mode (WiFi Off / GPS Off / 2CH) : 300mA / hour

* Actual power consumption may vary depending on use conditions and environment.

Certifications
Front: FCC, CE, RoHS, Telec, WEEE, IC, RCM
Rear: FCC, CE, RoHS, WEEE

Software
BlackVue Viewer
* Windows 7 or higher and Mac Yosemite OS X (10.10) or higher

Application
BlackVue Application (Android 5.0 or higher, iOS 9.0 or higher)

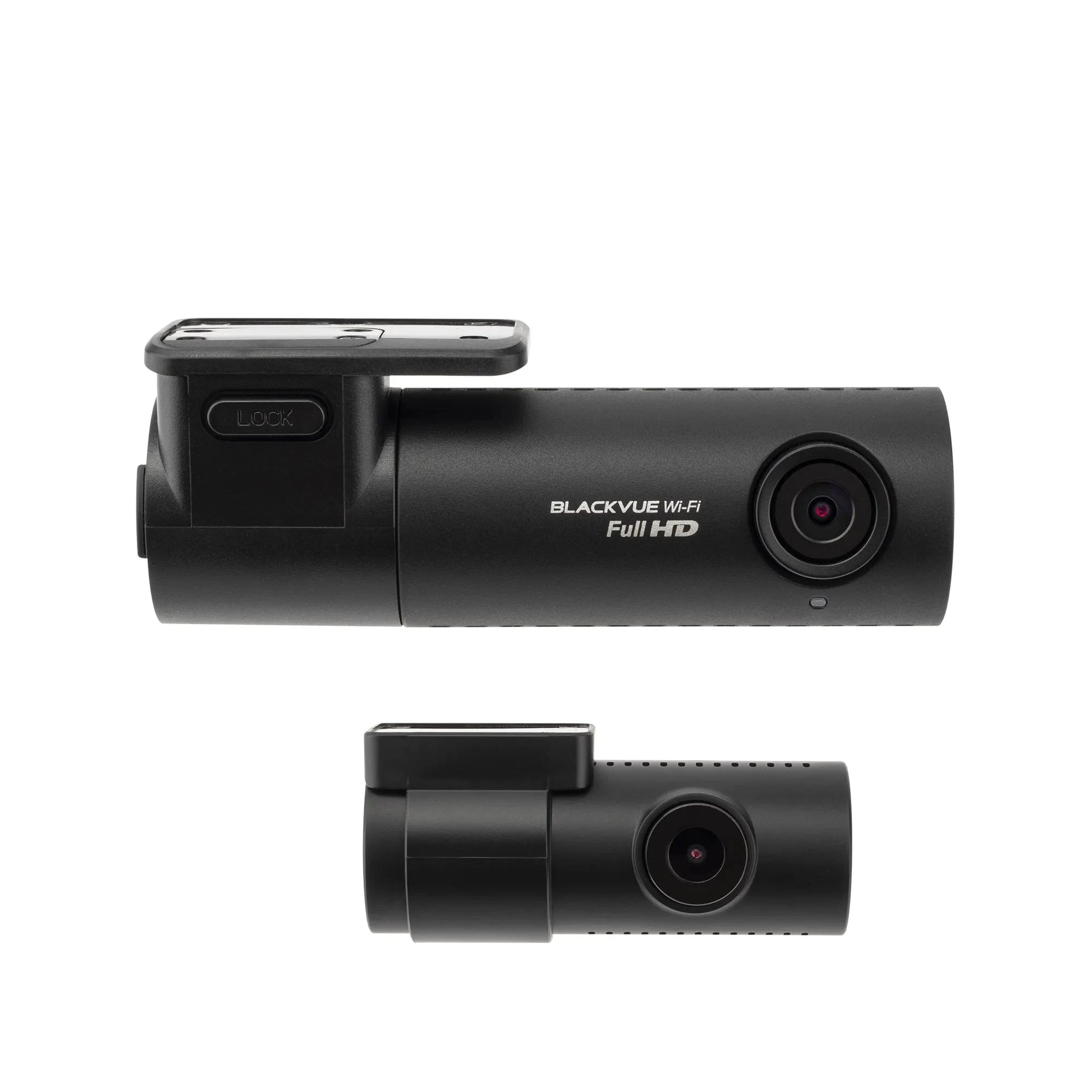

Front Camera
Rear Camera
Quick start guide
Cable clips (5EA)
microSD card
microSD card reader
Spare mount sticky pads
Analog Video Cable
Hardwiring power cable
Cigarette lighter power adapter
External GPS
